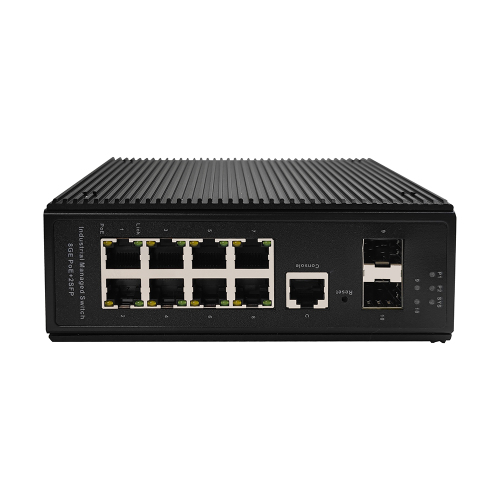

Industrial 8-Port PoE +2 SFP Slots Gigabit Managed Switch

Item No.: IES2000-8P-2FM Industrial PoE Switch
L2 8G+2SFP Managed PoE Switch
8*10/100/1000 RJ45 PoE port
2*10/100/1000 SFP Slots
PoE Standard: IEEE802.3 af/ at
Operating Temperature :-40℃~+85℃
Description Product Paramenters Software Function Product Size
Description

Industrial 8-Port  +2 SFP Slots  Gigabit Managed  Switch

Model: IES2000-8P -2FM


IES8200-8P-2FM is an industrial grade PoE multi-function network switch independently developed by GXCOM. 1-8 ports support 802.3af/at PoE standard and supply Max. 30W per port. As the most compatible 8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC) , Provide a comprehensive security protection system. The switch is with rich layer 2 management via Web interface and CLI both including remote PoE management. The durable metal housing is with Din-rail to install in any industrial environment.




















Product Features:

Product

L2 8G+2SFP Managed PoE Switch

PoE Port

 8*10/100/1000 RJ45 PoE port

SFP Slots

 2*10/100/1000 SFP Slots

 Input voltage

DC37-57V

 Power Standard

 IEEE802.3af/at

 Flow Control, MDI/MDIX

 Support

 Operating Temperature

 -40~+85

 Installation

 DIN-Rail








Product Paramenters

Model

IES2000-8P-2FM

Product

Industrial 8GE+2SFP Managed PoE Switch

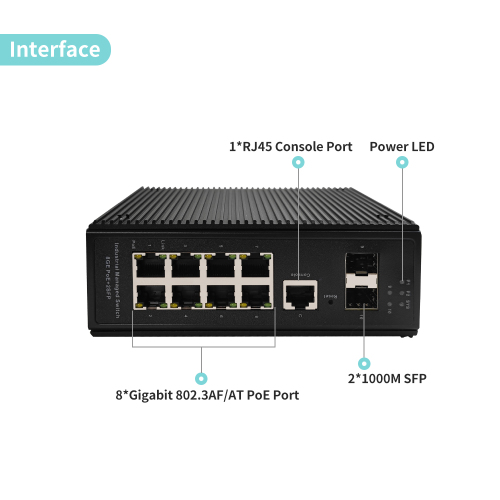

Downlink Port

8*10/100/1000M PoE Port

Uplink Port

2*1000M SFP

Console Port

1

Reset Key

1

CPU

500M

DDR

1G DDR3 1333MHz

Buffer

Fully integrated 4.1 M packet buffer

FLASH

16M

RAM

128M

Bandwidth

56Gbps

Packet Forwarding

14.44Mpps

MAC

8K

Power interface

Phoenix terminal, dual redundant power supply

Interface indicator lamp

PWRGreen,1000M or PoE (Yellow),Link(Green)

Network protocol

IEEE 802.3x
IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3z
IEEE 802.3ad
IEEE 802.3q IEEE 802.3q/p
IEEE 802.1wIEEE 802.1d IEEE 802.1S
IEEE 802.3z 1000BASE-X
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocol
802.3AF/AT/HiPoE/BT
AUTO 24V/48V PSE

Port Specification

1-8 port 10/100/1000BaseTXauto detectionAUTO-MDI/MDI-X

Transmission Mode

Store and Forward(full wirespeed)

Transmission Distance

10BASE-T  Cat3,4,5 UTP(≤250 meter)
100BASE-TX  Cat5 or later UTP(≤100 meter)
1000BASE-TX  Cat6 or later UTP(≤1000 meter)
1000BASE-SX:62.5μm/50μm MMF(2m~550m)
1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
BIDI supported

Power Consumption

Standby power consumption≤5W;
Network Full-load power consumption≤15W
Full load power consumption≤120W

Operating Temperature/Humidity

-40+80°C10%90% RH No coagulation

Storage Temperature/Humidity

-40+85°C5%95% RH No coagulation

Lightning Protection Level

6KV 8/20us8KV ESD
IP40

Product Size(L*W*H)

153*130*50mm

N.W(kg)

0.75kg

Installation

DIN guide rail type(additional wall hangers)

Warranty

Whole device for 1 year(Accessories not included)




Software Function

Software Function







Monitoring Platform

Quick formation of ring network
System temperature monitoring and alarm
External temperature and humidity monitoring and alarm
Input power monitoring and alarm
System each channel key voltage monitoring and alarm
System total current,total power monitoring and alarm
All-Port network monitoring and alarm
Support one group input and output signal monitoring and alarm



Network Protocol

IEEE 802.3x
IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3z
IEEE 802.3ad
IEEE 802.3qIEEE 802.3q/p
IEEE 802.1wIEEE 802.1dIEEE 802.1SIEEE 802.1X

MAC

Support 16K MAC address,auto aging and learning


VLAN Configuration

Support port-based VLAN
Up to 4096 VLANs
Support Voice VLAN, can configure Qos for voice data
802.1Q


Spanning Tree

STP(Spanning tree protocol)
RSTP/MSTP(Rapid spanning tree protocol)
EPPS/EAPS(Ring network protocol)
802.1x

Port Aggregation

Support 8 groups of aggregation, each group support up to 8 ports;

Port Mirroring

Support many-to-one port mirroring

Loop Guard

Support loop protection, real-time detection, quick alram, concise location, Intelligent blocking, automatic recovery

Port Isolation

Support downlink ports isolate from each other and communicate with uplink port as well

Flow Control

Half duplex based on Back pressure;
Full duplex based on PAUSE frame

Speed Limitation

Bandwidth management based on port input and output


Multicast Control

IGMPv1/2/3 and MLDv1/2 Snooping
GMRP protocol registration
Multicast address management, multicast VLAN, multicast routing port, static multicast address

DHCP

DHCP Snooping


Storm Suppression

Support unknown unicast, multicast , unknown multicast, broadcast type storm suppression
Storm suppression based on bandwidth adjustment and storm filtering


Security

Support User port+IP address+MAC address
ACL based on IP, MAC
Support security properties of number of MAC address based on port


QOS

802.1p port queue priority algorithm
Cos/Tos,QOS remark
WRR(Weighted Round Robin), weighted priority rotation algorithm
WRRSPWFQ priority scheduling modes

Cable Sequence

Auto-MDIX; auto detection on straight-through and cross-over cable

Negotiation Mode

Port support auto negotiation function(self-negotiation transmission rate and duplex mode)


System maintenance

Upgrade package upload
System log viewing
WEB recovery factory configuration




PoE Function
(only for PoE models)

Port switch
Schedule arrangement, timing switch
Voltage, current, power display
System total power display and configuration
PoEdog: support auto reset, timing reset and ip binding reset when device failed
Port power configuration(AF.AT HiPoE.BT)
Indication of over power
Port PoE type configuration(48V/24V power supplying)



Network Management

WEB interface management
CLI management based on TelnetTFTIPConsole
SNMP V1/V2/V3 management
RMONV1/V2 management
RMON management

Product Size
