Introduction

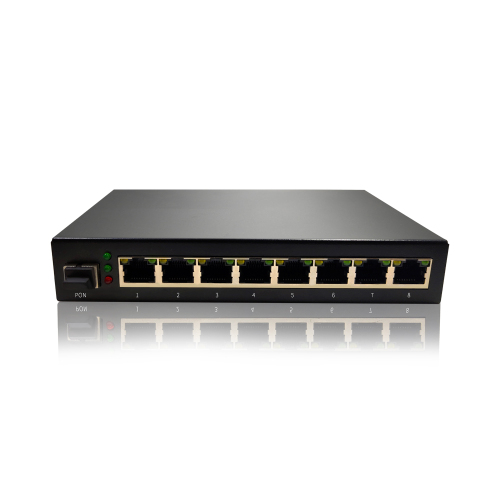

The G200-8P is a GPON FTTB type optical network unit specially developed for the network access at the outdoor environment, which has the Power over Ethernet (PoE) function. The G200-8P is especially designed for AP/IP camera backhaul scenarios, it can provide both data channel and DC power.
Key Features
•Perfect function of PoE： based on the IEEE 802.3af / at standard.
•High QoS：Ensure delay & packet loss requirements using hierarchy QoS.
•Plug and play：Offline provision，support remote configuration, upgrading and diagnosis.
•Carrier grade design：Reliability consideration during hardware, software and system design.
| Technical items | Description |
| Upstream PON interface |
1 GPON interface, SC single-mode/single-fiber, |
| Standard | Support ITU-T G.984 |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC/PC connector |
| Downstream LAN interface |
8*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
| Indicators | 8 indicators, for status of power supply, PON port and 8 Ethernet ports |
| Poe Standard | Ieee802.3af Ieee802.3at |
| Power supply | Input:100~240VAC, 50/60hz Output 52vdc 2.3A |
| Operating condition | Operating temp: -10℃~+55℃, operating humidity:10-90%(non-condensed) |
| Storing condition | Storing temp: -30~+60℃, storing humidity: 10-90% (non-condensed) |
| Dimension | 205mm*125mm*28mm(length*width*height) |
| Net weight | 1Kg |
