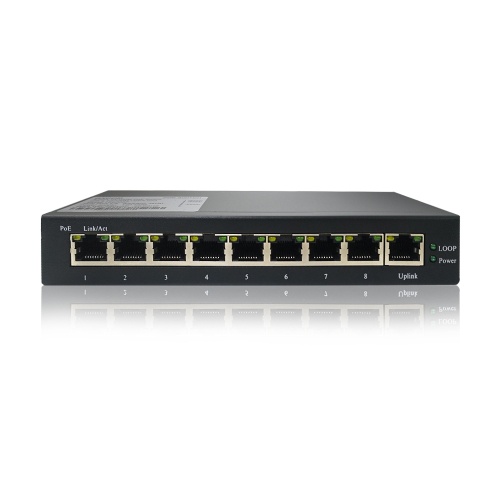

24V 8-Port 10/100Mbps With 1*100Mbps RJ45 Non-standard PoE Switch

Item No.: TS6108P
24V 8-Port 10/100Mbps  PoE Switch
1*100Mbps RJ45
Port 1-8 can support 24V non-standard PoE power supply
Request Quote
Description Specification Application
Overview
9-Port 10/100Mbps Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.8 of the 9 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those 24V Passive PoE compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.


Main Features
* With 8 PoE ports, transfers data and power on one single cable
* Working with 24V Passive PoE compliant PDs, expands home and office network
* Requires no configuration and installation
* External power adapter supply 120W


Hardware
Interface 9*10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45) PoE Ports: Port1- Port 8
Power Supply: 120W
PoE Pin definition 4/5 (+), 7/8 (-)
Backbound Bandwidth 1.8Gbps
Power Supply DC 24V/4A
Fan Quantity Fanless
Dimensions (L xW x H ) 190x96x27mm

SOFTWARE
Transfer Method Store and Forward
MAC Address Table 2K
Advanced Functions Compatible With 24V passive PoE Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Others
Certification FCC, CE
Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Package 9-Port 10/100Mbps Desktop Switch with 8-Port PoE
Power Adapter
User Guide
System Requirements Microsoft® Windows 8, Windows 7,98SE, NT, 2000, XP, Vista™ , MAC® OS, NetWare®, UNIX® or Linux.
