8-Port Gigabit Desktop Switch with 8-Port PoE

Item No.: 00138
8*10/100/1000M PoE Port
Supports PoE IEEE 802.3af/at
IC chip : REALTEK 8370NB
16G Bandwidth
TOTAL Power : 120W
Description Application Technical Specification Relevant Products Review
Description

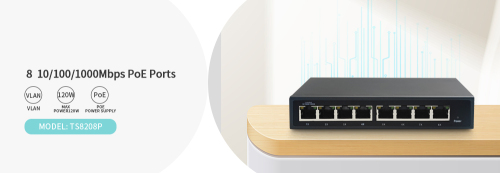

8-Port  Gigaibt Desktop Unmanaged PoE switch

Model:TS8208P



Introduction:




 8-Port Gigabit Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.


8 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.




TS8208P  is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8208P 8-Port Gigabit Desktop Switch with 8-Port PoE is a great selection for expanding your home or office network.


Key Features:

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 120W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 4K entry MAC address table of the  TS8208P  with auto-learning and auto-aging
  • External power adapter supply


Ordering Information:
TS8208P,  8 -port 10/100/000Mbps With 8- port PoE  IEEE802.3AF/AT




Application



*Wireless Access Point

*IP Camera

*IP Phone

*Computer Networks


Technical Specification




HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)  EIA/TIA-568 100Ω  STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 52VDC / 2.3A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port 8
Power Supply: 120W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Dimensions ( W x D x H )  (190*96*27 mm)

SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS

OTHERS
Certification CE, FCC, RoHS
Package Contents TS8208P, Power Adapter, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Relevant Products







HARDWARE FEATURES
Product
Model TS8204P-1G1F TS8208P TS8208P-2G TS8208P-2F TS8216P-2F TS8224P-2F
PoE Ports 1-4 Port 1-8 Port 1-8 Port 1-8 Port 1-16 Port 1-24 Port
Interface 5 *1000Mbps RJ45 Ports
1 *1000Mbps SFP Solt
8 *1000Mbps RJ45 Ports
10*1000Mbps RJ45 Ports
8*1000Mbps RJ45 Ports
2*1000Mbps SFP Solt
16*1000Mbps RJ45 Ports
2*1000Mbps SFP Solt
24*1000Mbps RJ45 Ports
2*1000Mbps SFP Solt
PoE Standard IEEE802.3af/at international standard
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless 2 2
Power Supply External Power Adapter        Built-in power supply
Total Power 78W(52V/1.25A) 120W(52V/2.3A) 120W(52V/2.88A) 120W(52V/2.88A) 300W(52V/5.76) 400W(52V/7.7)
Backbound Bandwidth 10Gbps 16G 20G 20G 56G 56G
Mac Address Table 4K 4K 8K 8K 16K 16K
Weight 1.0KG 1.2KG 1.5KG 2.5KG 4.5KG 5.0KG
Dimensions
 ( W x D x H )


160*90*28 mm

190*96*27 mm

210*140*45mm

280*140*45mm

440*290*45mm 440*290*45mm

SOFTWARE FEATURES
Transmission Method Store-And-Forward
Ethernet Port Feature 10/100/1000BaseTx auto-sensing,full/half duplex MDI/MDI-X self-adaption
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
OTHERS
Certification CE, FCC, RoHS
Package Contents Installation Guide
Environment Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
