Model |

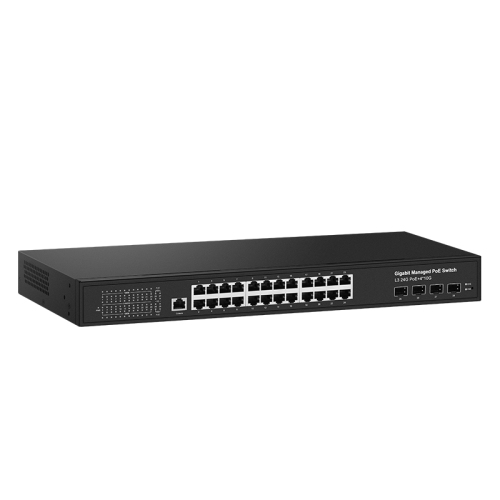

ES3000-24P-4SFP+ |
|
Downlink ports |
24*10/100/1000M Adaptive RJ45 ports |
|
Uplink ports |
4*10G SFP+ |
|
Console port |
1*console port |
|
PoEstandard power supply |
IEEE 802.3at、IEEE 802.3af |
|
Maximum output power |
400W |
|
LED indicator |
PWR, Link / Act |
|
transmission mode |
IEEE802.3 full duplex flow control and backpressure half duplex flow control |
|
Bandwidth |
512Gbps |
|
Packet Forwarding Rate |
95.23Mpps |
|
MAC address |
16K |
|
Standard protocol |
IEEE802.3i 10 BASE-TX IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x 10GBase-R IEEE802.3x Flow Control IEEE802.1p IEEE802.1x IEEE802.1d IEEE802.1s IEEE802.3az EEE |
|
Power supply |
Built-in power AC：100-240Vac 50-60Hz |
|
Size |
440mm × 290mm × 44mm |
|
working temperature |
Working Temperature: -10℃～55℃， Humidity: 10% ~ 90% Storage Temperature: - 40℃～75℃, Humidity: 5% ~ 95% |
|
Router |
Support OSPF dynamic route Support RIP V1 / V2 dynamic route Support static route Support ARP proxy |
|
Loop protection |
Support ERPS ring protection Support 50MS loop since healing Support BPDU protection, root protection and loopback protection |
|
Summing tree (STP) |
Support STP (IEEE 802.1D), Support RSTP (IEEE 802.1W) Support MSTP (IEEE 802.1s) Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering |
|
PoE management |
Support PoE port management Support PoE watchdog Support PoE power display |
|
DHCP |
Support DHCP server Support DHCP relay Support DHCP Snooping Support Option, Option82 |
|
VLAN |
Support 4K VLAN Support 802.1Q VLAN, Mac VLAN, protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support GVRP protocol Support 1: 1 and N: 1 VLAN mapping function |
|
MAC address table |
Follow IEEE 802.1D standard Support MAC address automatic learning and aging Support static, dynamic, filter address table |
|
Security feature |
Based on user grading management and password protection Support for port numbers, IP addresses, MAC addresses limit users access Support HTTPS, SSL V3, TLS V1, SSH V1 / V2 Support IP-MAC-Port-VLAN quarter binding Support ARP protection, IP source protection, DOS protection Support DHCP Snooping, DHCP Attack Protection Support 802.1x certification, AAA Support RADIUS Support TACACS + Support port security, port isolation Support CPU protection |
|
Access Control (ACL) |
Supports L2 (Layer 2) ~ L4 (Layer 4) package filter function Provide a source MAC address, destination MAC address, source IP address, destination IP address, TCP / UDP protocol source / destination port number, protocol, and VLAN package filtering function Support port mirror, port redirection, flow rate, QoS heavy mark Support IPv4, IPv6ACL |
|
Service quality (QoS) |
Support 8 port queues Support port priority, 802.1p priority, DSCP priority Support WRR, strict priority scheduling algorithm |
|
Multicast |
Support IGMP V1 / V2 / V3 Snooping Support MLD V1 / V2 Snooping Support fast leaving mechanism Support multicast VLAN Support multicast filtering, packet statistics, unknown multicast discard |
|
|
|
|
Management and maintenance |
Support Web network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1 / V2, local serial port) Support SNMP V1 / V2 / V3, compatible public MIBS Support LLDP, RMON Support CPU monitoring, memory monitoring Support system log, grading warning Support ping, traceroute detection, UDLD Support electrical port test, optical module information detection
|
