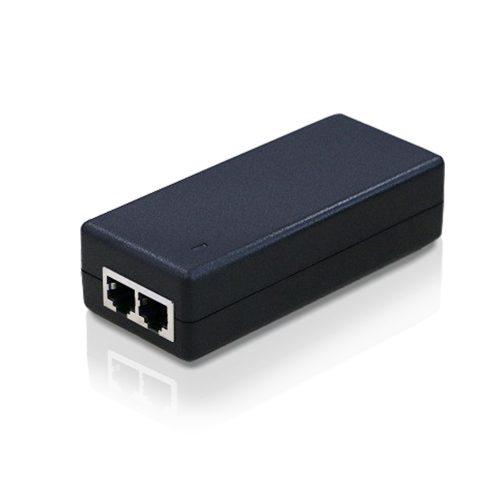

24V 1A Gigabit POE Injector 24W

Item No.: 00170
1-Port 10/100/1000Mbps “Data input”
1 -Port 10/100/1000Mbps “Data + Power output”
AC100-240V Midspan 4,5(+)/7,8(-)for Speed Dome camera, Access Point
Description Specification Application diagrame
Description

24V1A  Gigabit POE Injector

PJ101G-24V

 Main Specifications:

   Single Gigabit PoE injector, Midspan with power input AC100-240V and output DC 24V, rated power 24W.AC100-240V Midspan 4,5(+)/7,8(-), compatible for 24V non-standard powered device such as access point, WiMAX CPE, tilt-pan-zoom cctv cameras, normal power transmission is upto 100m.
1. Rated power24W via Mode-A +Mode-B
2. Transmission rate: Gigabyte 100/100/1000Mbps
3. Power protection: Over voltage/below voltage/short circuit/over-current
4. System reliability: MTBF>100000 hours@220Vac fullLoad
5. Certificates: CE, RE, EN55022, CALSS B

Specification




Model PJ101G-24V
Port 1*RJ45*10/100/1000M Data IN
1*RJ45*10/100/1000M PoE OUT
Power Pin   45+ 78-
PoE Output 24V  1A
Watt MAX 30W
Power Input AC 100-240V 50/60Hz
Transmission 10Base-T: two pairs of Cat3 or latter UTP/STP(≤100m)
100Base-TX: two pairs of Cat5 or latter UTP/STP(≤100m)
1000Base-T: for pairs of Cat5e or latter UTP/STP(≤90m)
Rate Ethernet 10Mbps half duplex,20Mbps full duplex
Fast Ethernet 100Mbps half duplex,200Mbps full duplex
Gigabit Ethernet 2000Mbps full duplex
Features Plug and play with out more configuration management
Under-voltage, over-voltage, Over-current and short circuit protection
ReliabilityMTBF100k hours
Comply to EN55022, CLASS BCERE
Operation
Environment
Operation Temperature-10℃65℃
Storage Temperature-40℃70℃
Operation Humidity10%90% RH Non coagulation
Storage Humidity5%90% RH Non coagulation
Specifications Product size110mm*42mm*30mm(L*W*H)
Weight0.2kg
Application diagrame
